hydraulic testing of engineering components

The following three examples demonstrate TQC's expertise in the area of hydraulic testing of engineering components:

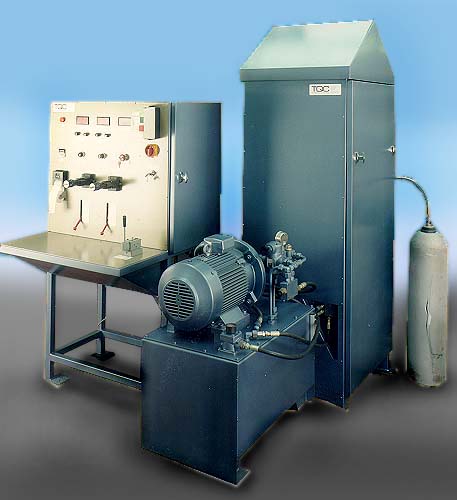

burst test

Destruction Testing aluminium gas bottles which need to withstand pressures of up to 1000 bar.  The test was achieved safely by pressurising with water whilst the cylinder is contained within a water jacket.  The water is pumped into the cylinder and the pressure then monitored for any change.

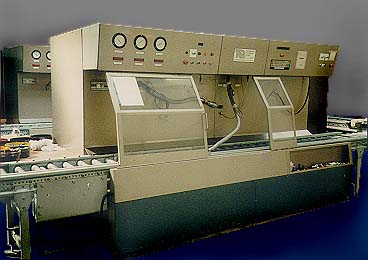

compressor testing

This is a typical self-contained production line test unit.  This model is for the flow and pressure testing of refridgerant compressors.   Such units feature automatic pressure control, data logging and results printout, and are fitted with quick connectors and sliding guards for ease of use.

pressure & permanent set test

This unit allows automatic pressure testing of gas cylinders to BS and DOT standards.  The system includes automatic weighing, filling, testing to 500 bar with expansion measurement, and full mechanical handling for up to 180 cylinders per hr. Results are displayed on an inspectors VDU and logged onto a central computer, the results are then analysed and printed.

key benefits

20 years Experience in specialised test & handling equipment

Professional & Flexible approach to all engineering tasks bestowed upon us

All work completed in house - so the buck stops here!

24hour Customer support, backup and service call-out for all projects large and small

If you have a current project that you are already looking at, or you are considering improvements to your production in the near future, call us and we will be happy to offer our professional advice & visit you at your site.
